316L Milk Transport Truck , Stainless Steel Water Tank Trailer With Pump System

316L Milk Transport Truck , Stainless Steel Water Tank Trailer With Pump System

Description:

• Core Application

Fresh milk tank trailer is the non-dangerous goods vehicle and facilitates the milk transportation between the pasture and the dairy plant. The tank of the trailer ideally matches with the characteristics of the milk: liquid, precipitation, deterioration. More importantly, the chemical reaction with the milk is preventive. The valid volume is 316L.

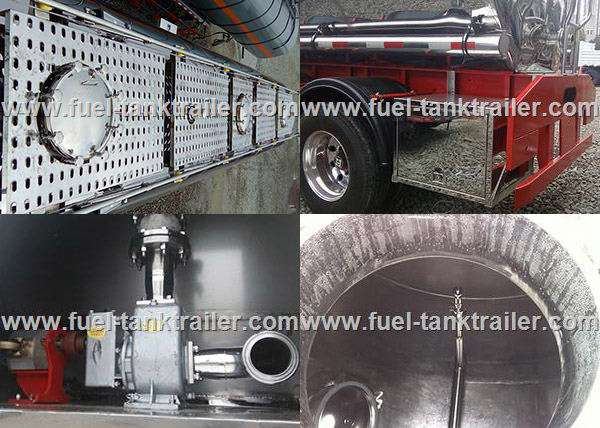

• Automatic Pumping and Cleaning

The milk trailer is equipped with pump and washing system, which can clean the tank automatically. The efficiency of manual washing is improved.

Advantages:

• Flexible Compartment

One or more compartments can be designed in accordance with actual demand.

• Dust Prevention

The reliable breather valve can prevent the dust and decrease material loss.

• Alloy Steel Axle

The axle produced by high-quality alloy steel has a high bending resistance and strong capacity.

• Food Hygiene

The inner liner made of stainless steel achieves the highest hygienic standard. The automatic welding and refined polishing make the interior evener and firmer.

• Built-in Anti-Wave Board

The anti-wave plate is designed in arc structure. The R50 arc can optimize the transition fillet and can keep the tank clean and tidy without any omission.

Specifications:

Tare Weight	8000kg--14000kg
Volume	316L
Axle Weight Load	13T/16T
Axle Brand	FUWA/BPW/others
Suspension	Common mechanical or Air Suspension
King Pin	JOST 3.5" traction pin
Dimensions	10500-13000mm*2500mm*3800mm
Support Legs	JOST Single 28T heavy duty
Wheel Rim	9.0-20
Wheelbase	1310mm
Steel Spring	10 pieces per axle
Ladder	Mechanical ladder
Accessories	1 Set standard tool box
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc.
Painting	1 coat of anticorrosive prime, twice coats of final paint
Tire Spec.	12R22.5 Vacuum tire
Number of Tire	8/12 pieces
Spare Tire Carriers	2 pieces
Manhole Cover	500mm manhole cover; 2 sets with 2 breather valve
Discharge Valve & Pipe	4 inch disc valve & 4 inch seamless steel tube
Brake Chamber	4 big chamber
Brake System	Dual Line Brake system
Configuration

Shipping:

Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain

Roll on roll off (RORO) ship
It's the ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

Bulk carrier ship
It's the ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
