LPG Tank Trailer

Air Suspension 3 Axle LPG Tank Trailer , Lpg Transport Trailers Big Effective Capacity

Item No.: HLV9602MNBH

Place of Origin: Suizhou, China
Brand Name: Huilong
Certification: ISO9001
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: in nude or by wax
Delivery Time: 4~6 weeks
Payment Terms: L/C, T/T

INQUIRY

Description

Water Cooled Red Color 6x4 Lpg Tanker Trailer 2.22MPa Hydrostatic Pressure

LPG Storage Tank

Description:

• Key Application
The LPG storage tank truck can transport all kinds of oil and fuel, covering liquid ammonia, carbon disulfide, epoxyethane, petrol, butane, propane, propylene etc. The truck can finish the mobile supply of LPG. The design strictly follows all technical regulations. Mandatory requirements on reliability, security and environmental protection are met.

Advantages:

• Cryo-insulation Vessel
The LPG storage tank is a vacuum powder cryo-insulation pressure vessel which consists of double layers. The inner pot is made of stainless steel. Q235B or 16MnR is applied in the outer pot. Meanwhile, rapid setting liquid paint is used.

• Safety Operation
Active and passive safety emergency protection devices are equipped to offer the hermetioally sealed cargo work. Thus, the evaporation is very low and the operation is safe.

Specifications:

Tank

Model

Horizontal

Type

Chemical Tank

Applicable Material

LPG

Design Pressure(MPa)

1.77

Max. Operating Pressure(MPa)

1.61

Hydrostatic Pressure(MPa)

2.22

Air Tight Pressure(MPa)

1.77

Corrosion Allowance

1.0mm

Design Temperature

-19～50℃

Shell Thickness

18.47mm

Cap Thickness

18.42mm

Heat Treatment

Overall

Tank Material

16MnR

Medium Density

420kg/m³

Other Parts

Thermometer

Pressure Gauge

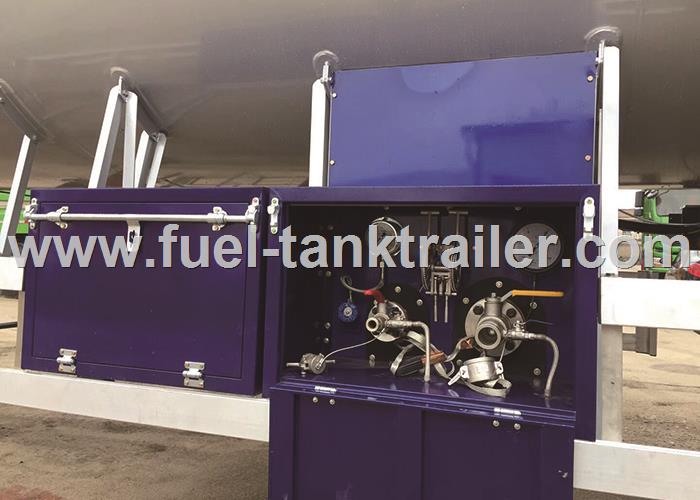

Valve Box

Vent Valve

Handle

Soft Tightwire

Hose

Level Gauge

Nominal Pressure

2.5MPa

Measurement Scale

50-3100mm

Accuracy

2.5

Safety Valve

Nominal Diameter

DN80

Breakout Pressure (BP)

1.68-1.76MPa

Reseating Pressure

≥BPx0.8

Cargo Handling

Nominal Diameter

Liquid Inlet Pipe

DN50

Liquid Outlet Pipe

DN80

Gas Inlet Pipe

DN50

Drain

DN80

Vent

DN80

Chassis

Brand

DONGFENG KL

Engine Power

270HP

Engine Model

Cummins ISD270

Max. Speed

90KM/h

Engine Type

Water-cooled;

inline six cylinder turbocharged and inter cooled;

high pressure common rail diesel engine

Nominal Power

198kw

Transmission

9 speed forward, 1 speed reverse, manual operation

Braking System

ABS

Gallery

3 Axle LPG Tank Trailer

Description:

• Main Application
LPG tank trailer is the professional vehicle for storing liquefied petroleum gas. The main composition is propane which accounts for over 95%. The rest is butane. LPG has been used for the fuel of light vehicles for many years.

Advantages:

• Verified Tank
The tank is checked according to standards like "supervision regulation on safety technology for stationary pressure vessel" and "static vacuum insulated cryogenic pressure vessel". Crack detection, hydrostatic test and pneumatic test are also conducted.

• Optimized Design
During design, finite element method(FEM) and miscellaneous configurations achieve the light weight of the trailer. The optimization of the structure improves the universalization and multiple uses of components. The compact structure covers less space.

• Customized Trailer
Spatial utilization of the tank is improved by means of optimizing running gear, operative box and each accessory. The regular operation and maintenance are facilitated as well. In consideration of diversified demand of users, the tanker has the potential of modular modification based on the standard type. Modular components can be added to monitor the status of the vehicle in real time. The centralized control simplifies the operation. The comprehensive solution is offered to the scientific and effective management of vehicles.

Specifications:

Dimension
Overall Dimension	13590×2550×3995(mm)
Gross Weight	40000(kg)
Rated Load	26000(kg)
Curb Weight	14000(kg)
Tank
Tank Volume	61.9CBM
Urgency Switch Valve	Gas phase DN25 Liquid phase DN50
Ball Valve	Gas phase DN25 Liquid phase DN50
Other Parts	Thermometer Pressure gauge Drain Valve box Vent valve Handle Soft tightwire Hose
Trailer Chassis
Axle	3pcs
Wheelbase	7010+1310+1310(mm)
Suspension (Optional)	Air suspension
Tyre Spec	11.00R20-12PR,12R22.5-12PR
Tyre Qty	12
ABS	Available
