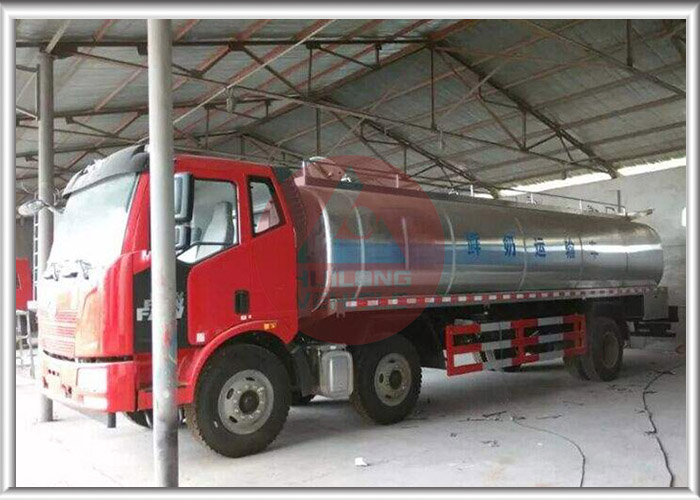

FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure

FAW Insulated Tanker Trailers 220 Horse Power Strong Power Fresh Keeping Structure

Description:

• Main Usage

Currently, special milk truck is the main vehicle for transporting milk and solves how to retain freshness. The heat preservation system can control the temperature variation and ensure the original quality of the milk.

• FAW Chassis

The transportation truck is modified by FAW chassis whose drive mode is 6x2. The load capacity of is up to 20000L, so it can transport much liquid food at a time.

The truck cruises at a low speed to improve the operation efficiency and reduce the labour intensity of the driver.

The strengthened frame and suspension facilitate the transportation and handling operation.

Advantages:

• Gearbox

Six gears are set in the gearbox. The mechanical synchronizer is used to control 2-6 gear. There are six forward gears and 1 backward gear. The shift between gears is flexible.

• Strong Power

The engine is equipped with an enhanced PTO to increase the nominal power. Moreover, the failure rate, noise and vibration of the engine are very low.

• Fresh-Keeping Structure

The milk tanker is designed with the integral thermal insulation structure. The exterior of the tank is protected by polyurethane material and stainless steel cladding. The temperature of storing milk can be held and is suitable for fresh-keeping.

• High Value

The milk truck is certified by international standards and main components are purchased with famous brands.

Specifications:

Overall Length	10800mm
Overall Width	2500mm
Overall Height	3150mm
External Size of Tank	8000*2360*1590mm
Internal Size of Tank	7800*2160*1390mm
Tank Capacity	20000L
Tank Material	stainless steel 304-2B
Tank Shell Thickness	4mm
Tank Insulation Layer Thickness	10mm
Chassis Brand	FAW
Drive Type	6*2
Steering	left hand drive
Wheelbase	1900+4500mm
Front/Rear Suspension	1400/2800
Tyre Size	10.00R20
Gearbox	6-speed by manual
Engine Model	BF6M2012-22E4
Engine Displacement/Power	6060ml/165kw
Engine Horsepower	220hp
Emission Standard	Euro IV
ABS	With
Air Conditioner	With
Gallery

Shipping:

Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain

Roll on roll off (RORO) ship
It's the ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

Bulk carrier ship
It's the ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
