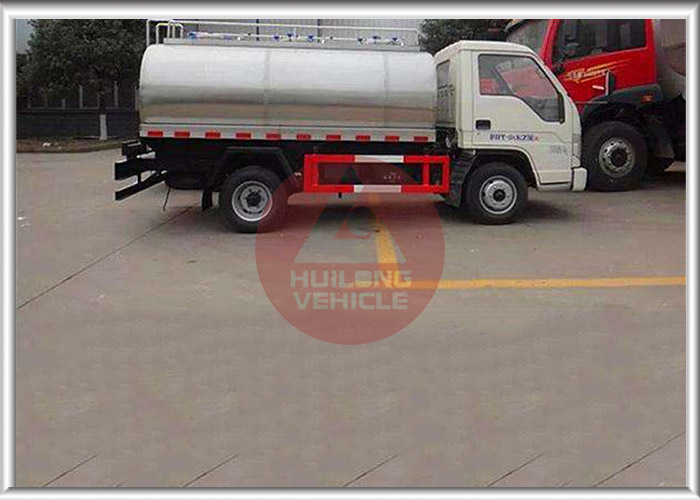

High Adaptability Bulk Milk Truck Cooling Milk Transportation Thermal Protection

High Adaptability Bulk Milk Truck Cooling Milk Transportation Thermal Protection

Description:

• Main Application

The milk transportation tank truck is also called liquid milk tank truck, which is shaped with Dongfeng chassis. Besides the milk, other liquid beverages like soda, coconut juice fall in the scope of transportation.

• Cooling System

A cooling system is pre-installed to reduce the temperature so that bacteria can't survive in the extremely low temperature. Then, the quality of the milk is maintained.

Advantages:

• Thermal Protection

A heat insulation layer should be set in the middle of the tank body to prevent deterioration of fresh milk. The inside of the tank should be smooth and free of sharp angles. The milk tank has a built-in cleaning device as well.

• Airtight Performance

The connection between the pipe and the joint is firm. Furthermore, a dust cover is equipped. The operation box is well sealed and prevents the pollution caused by rain and dust.

• Caution System

The truck is equipped with lighting and signal device covering reflector, sign board to increase the visibility. Thus, traffic accidents can be greatly avoided.

Specifications:

Tare Weight	7300kg
Chassis Brand	Dongfeng
Volume	3-6 CMB
Axle Weight Load	13T/16T
Axle Brand	FUWA/BPW/others
Suspension	Common mechanical or Air Suspension
King Pin	JOST 3.5" traction pin
Dimensions	10500-13000mm*2500mm*3800mm
Support Legs	JOST Single 28T heavy duty
Wheel Rim	9.0-20
Wheelbase	1310mm
Steel Spring	10 pieces per axle
Ladder	Mechanical ladder
Accessories	1 Set standard tool box
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc.
Painting	1 coat of anticorrosive prime, twice coats of final paint
Tire Spec.	12R22.5 Vacuum tire
Number of Tire	8/12 pieces
Spare Tire Carriers	2 pieces
Manhole Cover	500mm manhole cover; 2 sets with 2 breather valve
Discharge Valve & Pipe	4 inch disc valve & 4 inch seamless steel tube
Brake Chamber	4 big chamber
Brake System	Dual Line Brake System
Gallery

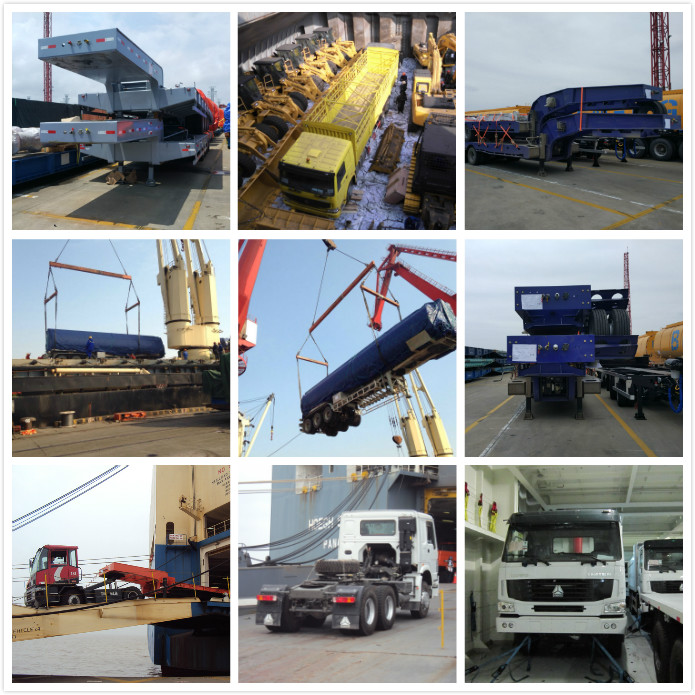

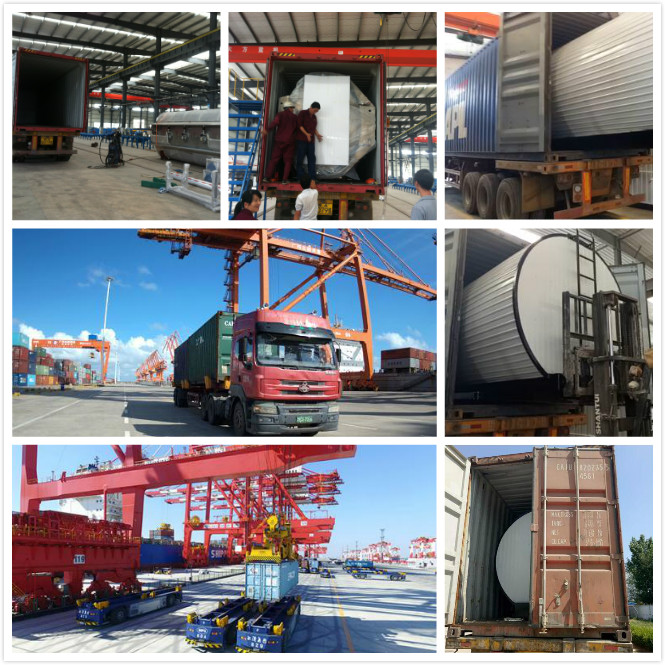

Shipping:

Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain

Roll on roll off (RORO) ship
It's the ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

Bulk carrier ship
It's the ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
