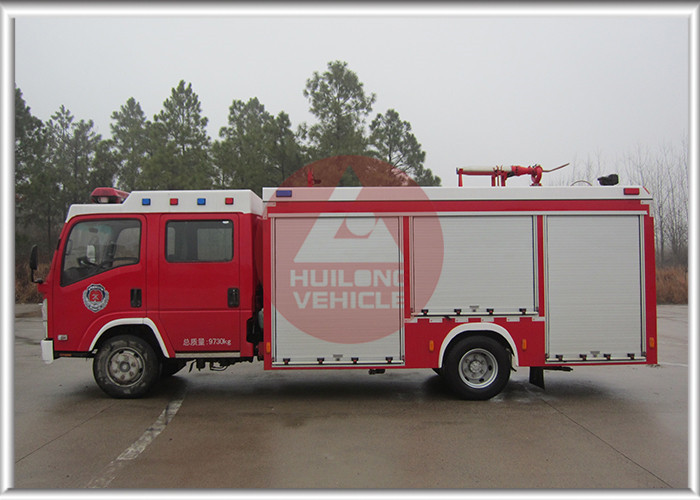

Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity

Isuzu Fire Fighting Vehicle , 3.5t Foam Fire Rescue Vehicles 20 L / S Flow Capacity

Description:

• Wide Application

Foam fire engines are mainly equipped with fire pumps, water tanks, foam mixing systems, foam guns, guns and other firefighting equipment. It is especially suitable for fighting oil fires such as oil and its products, and can also supply water and foam mixture to fire sites. It is a necessary firefighting vehicle for petrochemical enterprises, oil terminals, airports and urban professional fire brigades.

• High Reliability

This product adopts the ISUZU chassis to carry on the modification. The quality is more reliable. The tank can hold 3.5 tons of water and foam. The framework of our product is reasonable. The vehicle is suitable for all kinds of fire scene.

Advantages:

• Overview

The price of the product is low. The quality is high. The function and the equipment are comprehensive. Hence, it is deeply liked by the customer.

• Suitable for Small and Medium Fire

Our products can hold 3.5 tons of water and foam. They are suitable for small and medium firefighting work and can reduce waste of resources.

• OEM Products

We accept OEM products if our customers submit the request.

Specifications:

Product Parameter	Name		ISUZU 3.5T Foam Fire Truck
	Brand		JDF
	Model		JDF5070GXFSG20Q
	Total Mass(kg)		9730
	Curb Mass(kg)		4140
	Rated Mass(kg)		3500
	Overall dimension (L*W*H/mm)		6730*1980*2785
	Wheelbase(mm)		3615
	Approaching/Departure Angle(°)		24/13
	Front/Rear Thread(mm)		1504/1452
	Front/Rear Suspension(mm)		1015/1900
	Front/Rear Axle Load(kg)		2010/4505
	Leaf Spring No.		8/6+5
	Axles No.		2
Chassis	Brand		ISUZU
	Model		NKR77PLLWCJAY
	Transmission		6 forward gear,1 back gear, manual mechanical type
	Clutch		dry clutch, hydraulic control system
	Braking System		Air brake
	Drive Type		4*2
	Tyre		7.50-15,7.50R15,7.00-16,7.00R16
	Tyre No.		6
	Cabin		doule row,6 passengers
	Engine	Brand	ISUZU
		Model	4KH1-TC
		Displacement(cc) /Power(kw)	2999 /96
		Horse Power(hp)	120
		Emission Standard	Euro4
Special Function	Fire Pump	Model	BS20 (ordinary pressure pump)
		Flow Capacity	20L/s
		Pressure	1.0MPa
	Fire Monitor	Model	SP20
		Shot Range	≥48m
