Description:
• Core Application

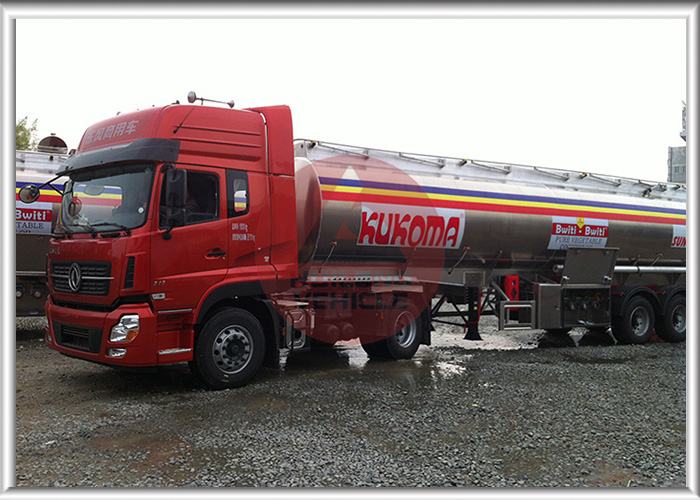

Aluminum fuel trailer is suitable for the transportation of gasoline, kerosene, oil, vegetable oil, edible oil, heavy oil, and other liquid substances. It can also be used to store non-petroleum products such as alcohols, aldehyde, benzene, ethers, etc.
• Reliable Quality
Edible oil palm oil transport aluminum trailer is made of aluminum alloy with thickness of 6mm and adopts advanced welding technology. So the trailer has a beautiful appearance and reliable quality.
• Large Volume
The palm oil aluminum trailer is ellipse shape and can load 40000L edible oils.
Advantages:
• Safer Transportation
The aluminum alloy tank trailer is light in weight, so it is safe to drive with the low the center of gravity. Besides, the static electricity seldom occurs owing to the good conductivity of aluminum alloy. Hence, the probability of accidents during transportation decreases.
• Transport More Oil
The lightweight design makes the palm oil aluminum alloy tank trailer can load more oil. Consequently, the transportation efficiency is improved.
• Sustainable Material
Aluminum alloy products are resistant to corrosion. After the aluminum alloy tanker trailer is scrapped, the aluminum alloy tank still has a large recyclable value.
Specifications:
| Wheel Base (mm) | 7300+1350+1350 |
| Dimensions(mm) | 11900*2490*3990 |
| Tyre Specifications | 12R22.5 |
| No. of the Tyres | 12pcs |
| Axle | 13T |
| No. of the Axles | 3pcs |
| Oil Tanker | 40,000 liters |
| Spare Tire Carrier | 1 set |
| Tool Box | 1 box of standard tools |
| King Pin | JOST brand 2” bolt-in King Pin |
| Landing Gear | JOST brand two-speed, manual operating, heavy duty landing gear |
| Accessory | One tooling boxes , Two spare tire carrier, Two fire extinguisher |
| Suspension | Heavy duty mechanic suspension with 10 pcs leaf spring |
| Electrical System | 24V, 7 core socket, lights according to European standards. |
| Brake System | WABCO RE 6relay valve; T30/30+T30 spring brake chamber; 40L air tanks |
| Gallery | |
 |
|
Shipping:
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain
Roll on roll off (RORO) ship
It's the ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
