Standard Shipping Container Transport Truck Solid Packing With Strong Adaptability

Standard Shipping Container Trailer Solid Packing With Strong Adaptability​

Description:

• Main Application

The container trailer puts all kinds of goods with different shapes and sizes into the container with standard dimension before the delivery. The mode of transport is the integration of sea, road and air. It can realize the mechanization and standardization of cargo work and transportation. Hence, the cargo transport trailer is an important part of the modern transportation.

• Distinctive Features

This trailer enlarges the unit of goods, reduces packing material, and serves as a temporary storehouse. Besides, it is easy to carry the moveable container.

Advantages:

• Facilitate Handling Operation

It only takes several minutes for container to reload goods. The time for waiting for cargo is reduced and the productivity of labour is improved. The turnover velocity of cargo and vehicles is expedited.

• Save Packing Charges

Since goods are directly put in the container, further packing is unnecessary.

• Reduce Damage and Loss of Cargo

The container is a solid packing. It is only opened for cargo handling at the origin and destination. Pilfering, humidity and dirtiness can be avoided.

• Strong Adaptability

The cargo work of the container is not influenced by atrocious weather.

Specifications:

DIMENSIONS
Tare Weight	7700KGS	Payload	45000KGS
Overall Length	12400mm	Overall Width	2480mm
Technical Data
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345; Welded by automatic Submerged- Arc processes; Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
Axle	3 axles
	Brand name: BPW, L1 or FUWA
Suspension	Mechanical suspension or air suspension
Spring	Leaf spring or air bag
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed; manual operating; heavy duty landing gear
Wheel Rim	8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
Twist Lock	12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
Tyre	11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
Spare Tyre	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
Painting	Complete Chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint
Accessories	One standard tool box

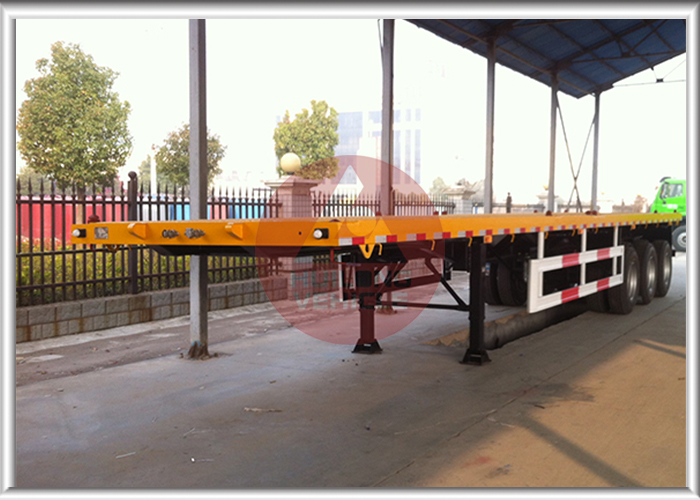

Gallery

Shipping:

Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain

Roll on roll off (RORO) ship
It's the ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.

Bulk carrier ship
It's the ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.

Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
